TUO Transformer
- MPN:
- TUO
- Availability:
- Available for shipment. Call for quantity discounts or for custom bends on leads 937-426-8600
- Shipping:
- Calculated at Checkout
Description
TUO Transformer (MPN: TUO)
Engineered for high-performance RF applications, commercial broadcast transmitters, and precision amateur radio systems, the TUO Transformer delivers proven electrical reliability, tight component tolerances, and superior thermal stability. Supplied and supported by Communication Concepts, Inc. since 1979.
Technical Specifications & Identification
| Manufacturer / Supplier: | Communication Concepts, Inc. (Proprietary USA Manufacturing) |
| Manufacturer Part Number (MPN): | TUO |
| Primary Application / Use Case: | High-Power HF/VHF/UHF Solid-State Amplifier Output Matching (2-300 MHz) |
Component Overview, Specifications & Bill of Materials
These TUO transformers are intended for output impedance matching applications in the 2-300 MHz frequency range up to 1KW. The winding material is semi-rigid coax cable. The primary and secondary windings are DC isolated. Depending on the power levels involved, the band may have to be divided into two or three segments. The Type "U" transformers require a presence of magnetic material, such as ferrite to increase the winding inductance, for operation below approximately 75MHz. The magnetic material is available separately.
The TUO transformers are available in the following windings:
2 Turn 1:4 Impedance ratio
3 Turn 1:9 Impedance ratio
4 Turn 1:16 Impedance ratio
The TUO transformer is available manufactured with standard solder or with lead free solder. In stock for immediate shipping.
Downloads:

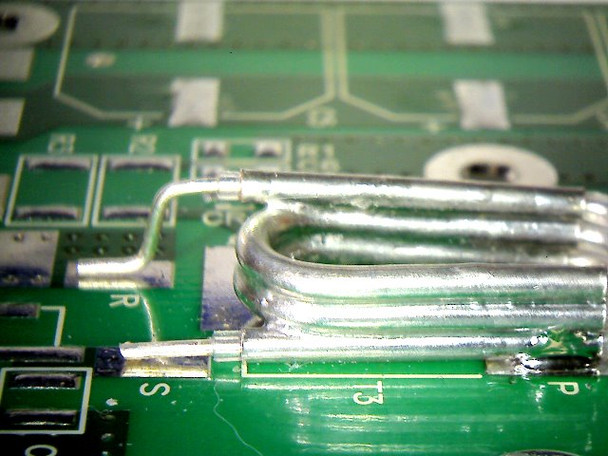

Custom lead bending available. Contact us with your specifications.
Key Engineering Highlights
- Verified RF Performance: Inspected and kitted to meet strict solid-state HF, VHF, and UHF operating standards.
- Drop-In Compatibility: Ideal for Motorola application note builds, commercial transmitter maintenance, and custom linear pallet designs.
- No Minimum Order Quantities: Fast domestic and international shipping with most orders shipping in under 1 week.
Looking for Volume BOM Pricing or Corporate Net 30 Terms?
Communication Concepts, Inc. supports commercial procurement, university laboratories, government/defense contractors, and volume Bill-of-Materials (BOM) orders. Contact our engineering sales team for custom institutional quotes.
